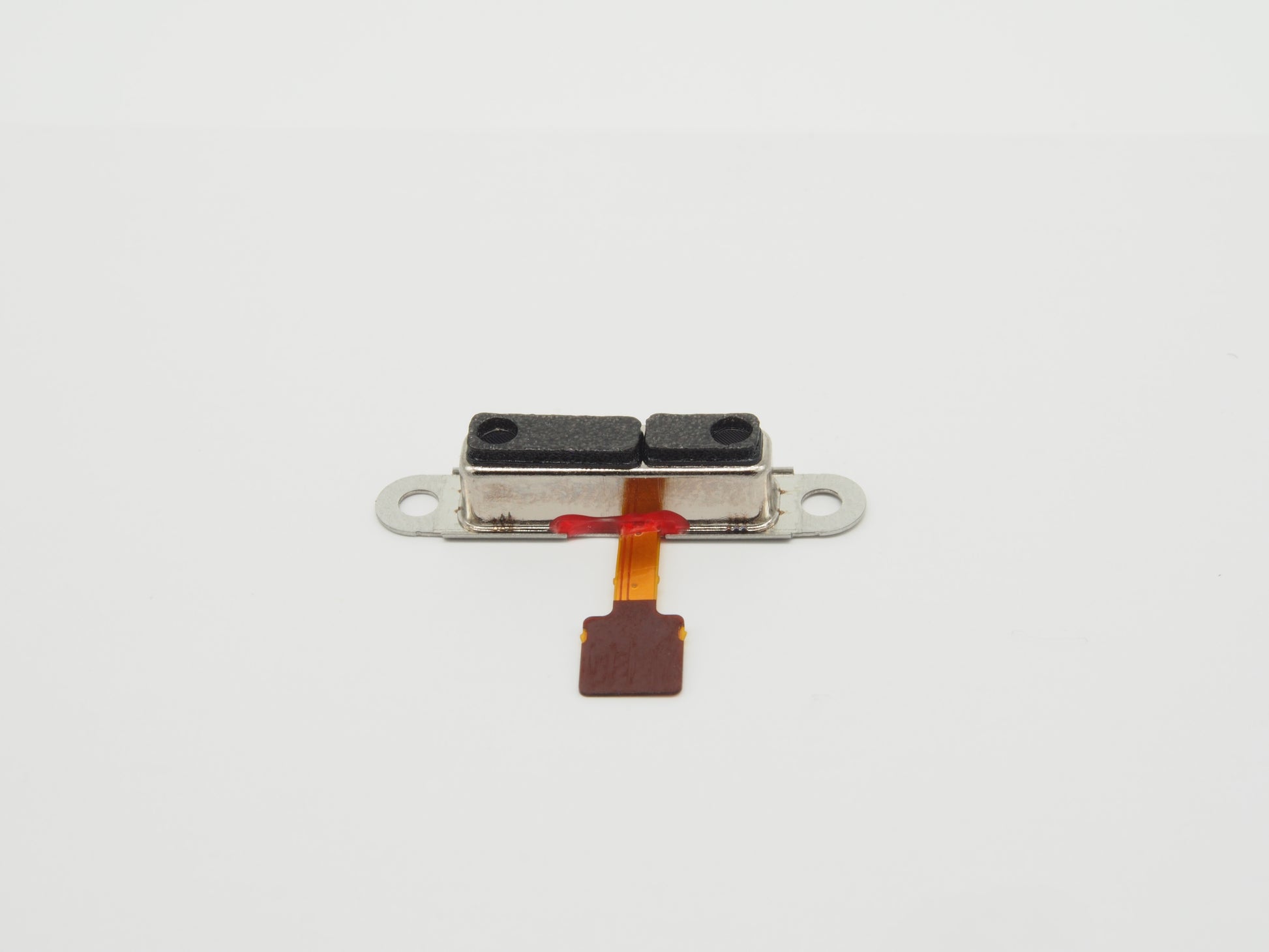

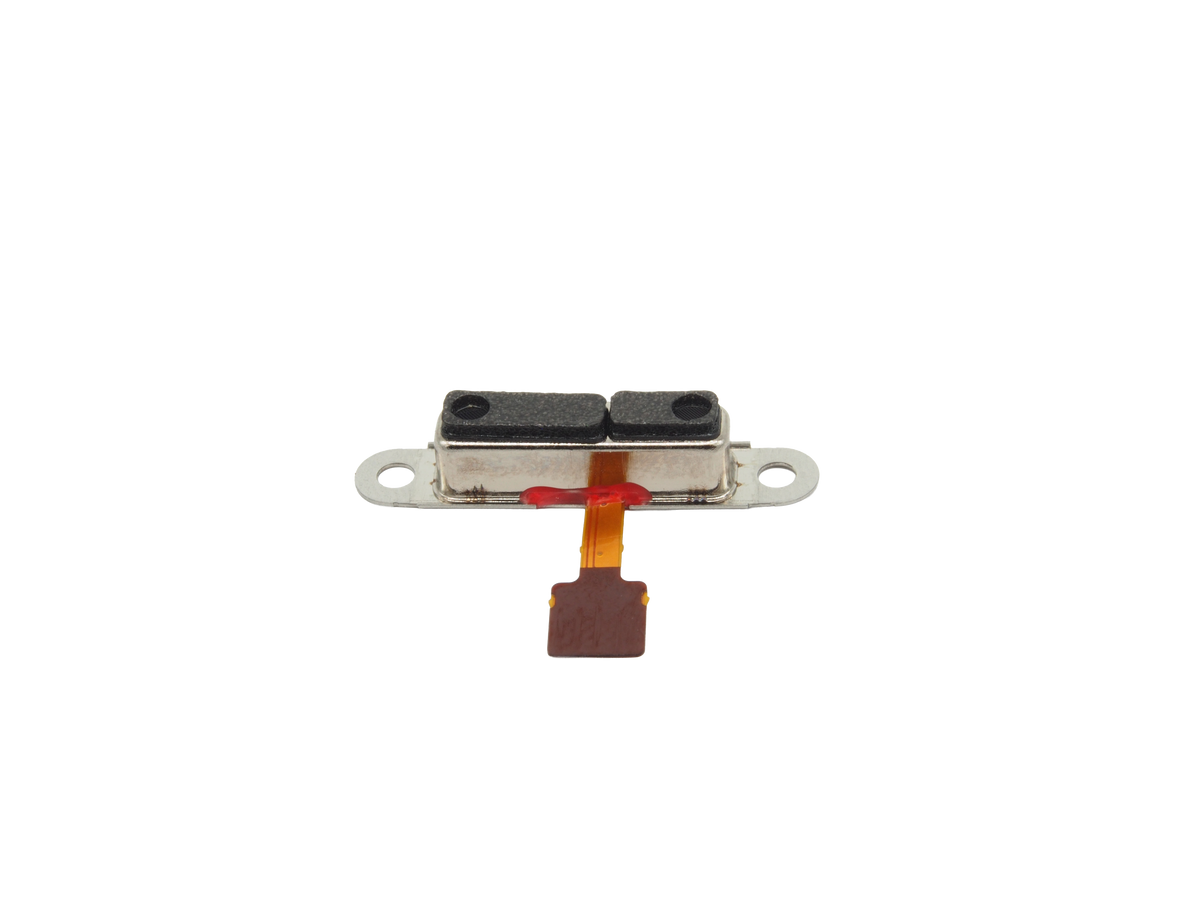

Soundskrit SKM2600-HC Module

The SKM2600-HC is a plug-and-play analog MEMS-based directional microphone module for consumer electronics. It is based on the SKR0600 analog MEMS directional microphone.

• Hypercardioid polar pattern

• 65 dBA SNR

• 5.3 dB DI • Single-ended output

• 115 µA supply current

• Integrated meshes for IP57 with compressible sealing foam

• Pre-tested for >20 dB sealing

• Ports integrated on single surface

• Compressible sealing foam

• 12mm sound port spacing

Datasheet
