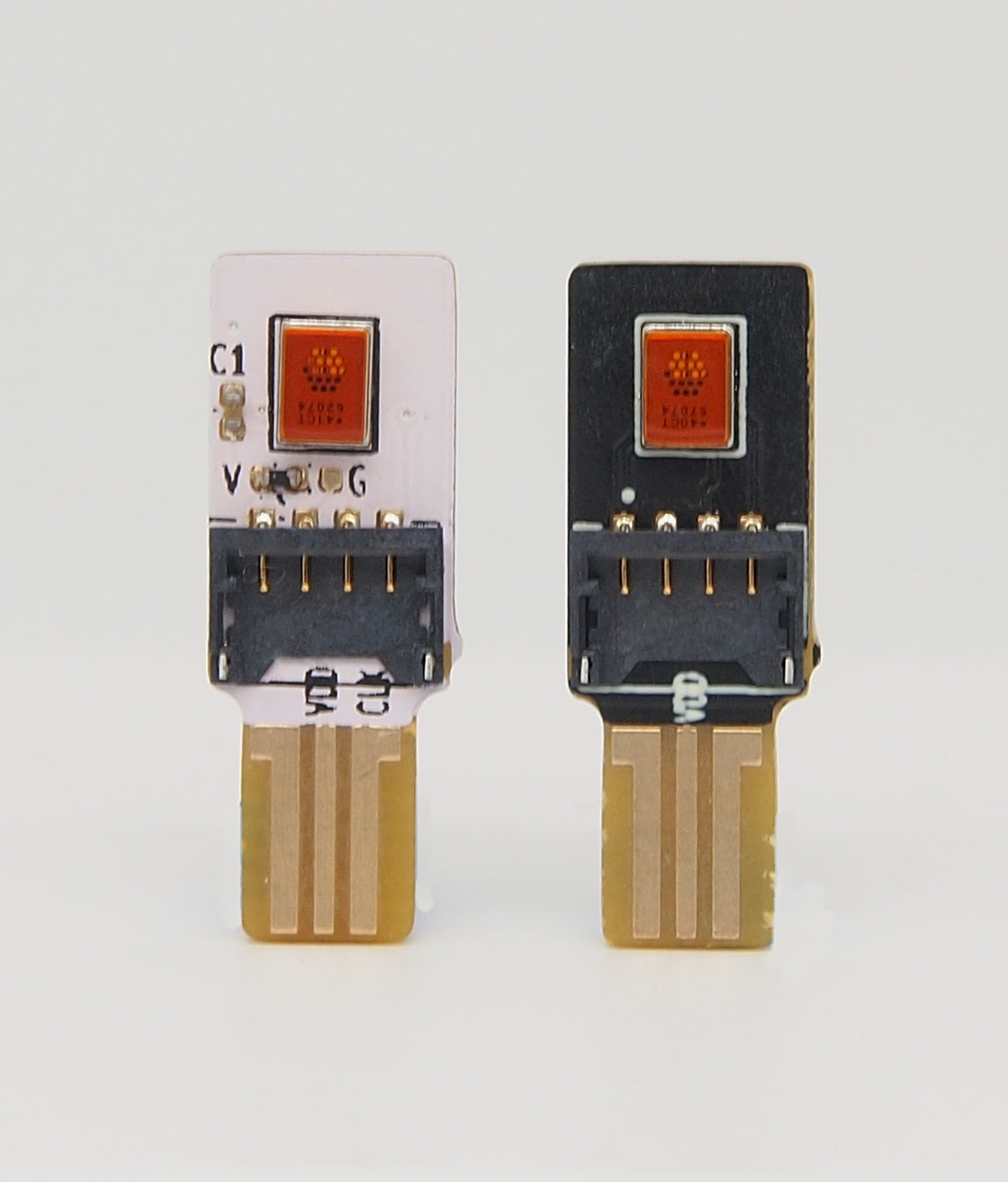

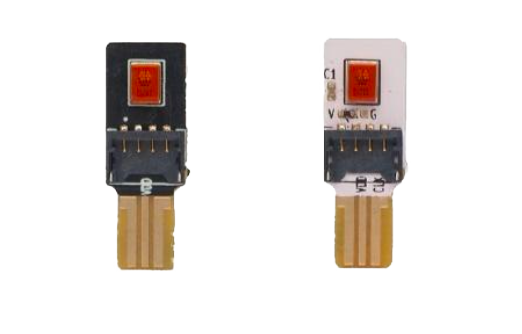

Soundskrit SKR0400 Microphone Coupon Board

Microphone samples soldered to coupon boards with a Molex connector. Coupon board samples include a cable for the Molex connector with bare leads.

• Directional from 20 Hz to 20 kHz

Dipole polar pattern

4.8 dB diffuse noise rejection

>20 dB noise rejection at the null Dual sound ports

• Differential or singled-ended output

• 63.5 dBA SNR

• Low THD:

1% THD at 116 dB SPL

AOP at 131 dB SPL (Standard Mode)

AOP at 134 dB SPL (High-AOP Mode)

• 115 µA supply current

• 3.50 x 2.65 mm2 footprint

• -40 to 85 °C operating temperature
