Soundskrit SKR0410 Microphone Coupon Board

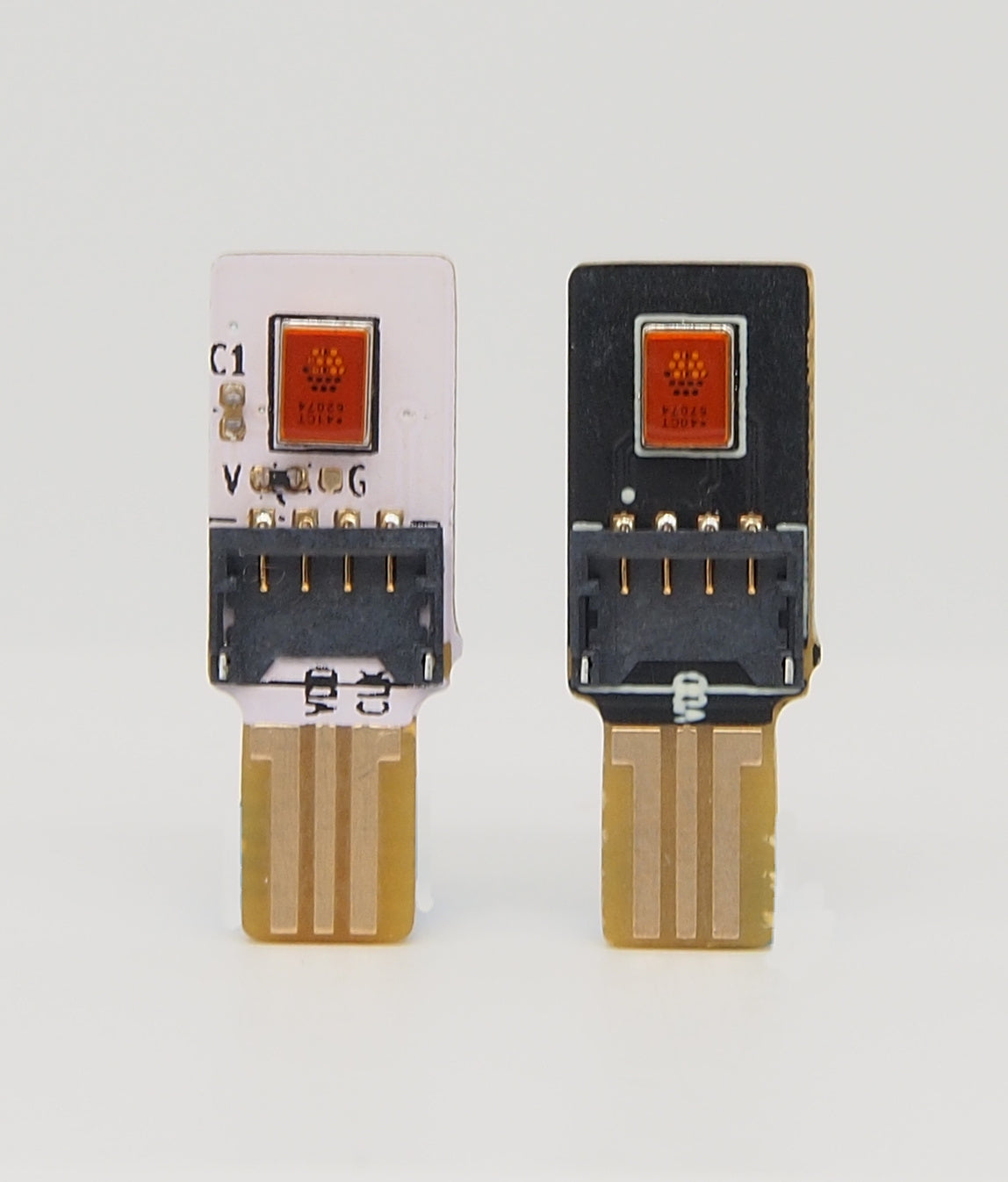

Microphone samples soldered to coupon boards with a Molex connector. Coupon board samples include a cable for the Molex connector with bare leads.

• Directional from 20 Hz to 20 kHz Dipole polar pattern

4.8 dB diffuse noise rejection

>20 dB noise rejection at the null Dual sound ports

PDM output

• 63.5 dBA SNR

• 1% THD at 111 dB SPL 1 kHz

• 685 μA supply current at 2.4 MHz

• 3.50 x 2.65 mm2 footprint

• -40 to 85 °C operating temperature

Datasheet
